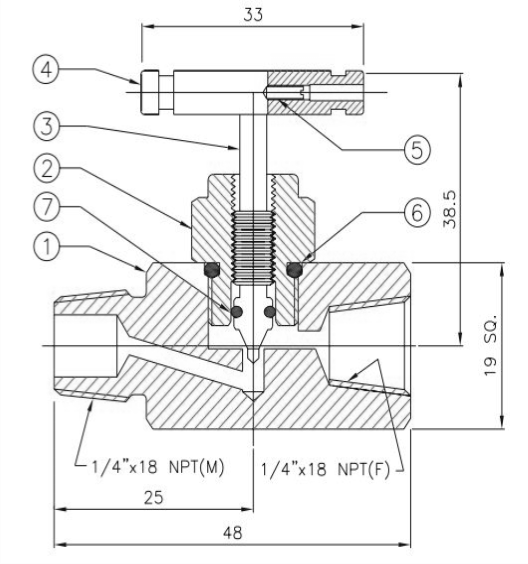

Vee tip design - Controls accurate flow

Stem threads Rolled & Hard Plated - Provides additional strength & maximum service life.

Mirror Finish Stem, burnished to a 16RMS - Extends packing life and smooth stem operation

Fully Supported Packing - Reduces need for adjustment.

Packing Nut - Easy and fast to move external adjustment.

Stainless Steel Handle - For proper actuation.

Dust Cap - Prevents contaminants and lubricant washout of bonnet assembly.)

Maximum Working Pressure : 4000 PSI (280 bar) at 200 o C. .

100% Factory tested.
